Fermentation tank
The fermentation tank, refers to the industry for microbial fermentation device. The subject is usually made of stainless steel plate cylinder of main type, the volume is in 1 m3 to hundreds of m3. Structure should be paid attention to in the design and processing, reasonable. Resistant to steam sterilization, has certain elasticity of operation, the internal attachments to minimize (avoid blind Angle), material and energy transfer performance is strong, and can be adjusted to a certain order to clean, less pollution, suitable for a variety of products and reducing energy consumption.

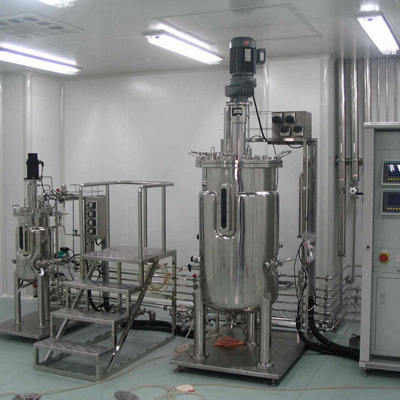

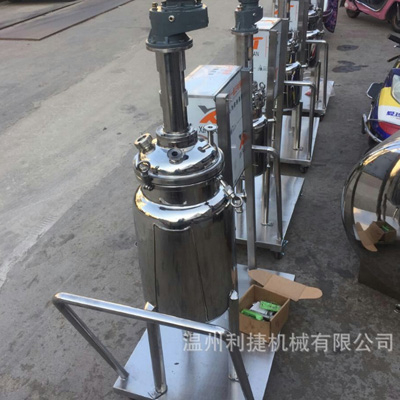

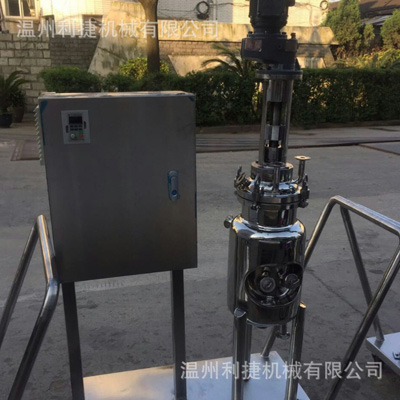

Small and medium-sized mechanical agitation stainless steel fermentation tank, laboratory small fermentation tank
This product is widely used in scientific research institutes and enterprises of microbiology laboratory, is an ideal tool for precision fermentation tests. Can be applied to microbial fermentation culture medium formula selection, optimization of the process parameters and fermentation technology and strain of validation. Especially the especially thick mash medium can adapt.
One, system composition:
System consists of fermentation tank, air handling systems, steam cleaning system, electrical control system, constant temperature system, piping and valves, auxiliary system, sensor and an instrument system, lower machine control system, PLC control system, secondary instrument), PC system and platform, etc.
Second, the technical parameters
項目 | 技術參數 |
公稱體積 | 5L、7L、10L、15L、30L、50L、70L、100L、150L、200L |
裝液系數 | 65-80%,最適70% |
罐體配置 | 不銹鋼SUS316L/SUS304材質; |
攪拌系統 | 頂入式機械攪拌系統;無菌機封系統;直流攪拌電機(10L及以下)或交流電機; |
結構方式 | 落地式框架結構,節省空間,萬向腳輪,操作方便 |
通氣系統 | 深層通氣,全不銹鋼管路; |
罐壓控制 | 頂部排氣口配置指針式壓力表顯示罐壓,不銹鋼閥門手動調節; |
溫度控制 | 在線檢測,數字化設定,自動/手動控制自由切換; |
pH控制 | 在線檢測,1路或2路蠕動泵自動流加堿或酸液進行調節; |
溶氧(DO) | 在線檢測,范圍0-100%或0-200%; |
補料控制 | 標配1路/2路等多路蠕動泵時間比例流加補料,流加量累積顯示、記錄 |
消泡方式 | 傳導式泡沫電極,泡沫異常狀況自動報警; |
控制系統 | 應用工業級MC-bio控制系統,采用西門子PLC控制器; |
滅菌方式 | 在位滅菌,手動控制,需接外源飽和蒸汽 |
可選配項 | 1.多路補料 |
設備特點 | 在位滅菌,安全可靠,培養基濃度準確; |
三、發酵系統配置清單
序號 | 設備名稱 | 備注 |
1 | 發酵罐 | 高硼硅玻璃或者SUS316L不銹鋼 |
2 | 下位機控制系統 | 觸摸屏+可編程控制器 |
3 | 溫度控制系統 | 德國Pt100 |
4 | pH檢測控制系統 | 瑞士梅特勒(漢密爾頓)原裝進口 |
5 | DO檢測系統 | 瑞士梅特勒(漢密爾頓)原裝進口 |
6 | 補料系統 | 蠕動泵流加 |
7 | 消泡系統 | 蠕動泵流加 |
8 | 壓力檢測系統 | 在線指示 |
9 | 流量系統 | 在線指示 |
10 | 轉速控制系統 | 轉速變頻可調 |
11 | 無菌空氣過濾系統 | 膜過濾 |
12 | 管道、閥門 | SUS316L不銹鋼 |
13 | 蒸汽發生器(選配) | 與發酵罐配套 |
14 | 空氣壓縮機(選配) | 與發酵罐配套 |
